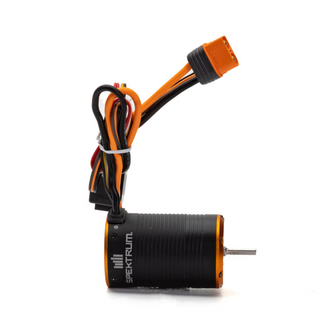

New Spektrum Firma 2-in-1 1400KV Brushless Crawler Motor/ESC Installed In Element Ecto


Note: these won’t fit In the Vanquish as It requires a 540 size motor


Spektrum sent me this new Firma 2-in-1 Brushless Crawler Motor/ESC to show it in action. The install was super simple because it already comes with an IC3 connector installed. The best part about this is that it is space saving to all you to mount other items in the little space you have in chassis. The sensored brushless power is very smooth and quiet. For the price savings over dedicated Motor and ESC options, this is definitely worth looking at.


You can get the products seen in the video at the following links. They are affiliate links that do help support this channel, so I can continue bringing content.


**Buy Products Scene In The Video**

Spektrum Firma 2-in-1 1400kv: https://bit.ly/3lntnNH

Spektrum Firma 2-in-1 2300kv: https://bit.ly/3BnI9JH

Spektrum V2 Program Card: https://bit.ly/3GahP8V


Element Ecto: https://bit.ly/3DpWoOK

Reedy 3s Lipo Shorty Pack: https://bit.ly/3E2dUsT

JConcepts Landmines: https://bit.ly/3aZavOS

Injora wheels: https://amzn.to/3E82dke

Injora Dual Stage foams: https://amzn.to/3G75lit





FROM THE MANUFACTURER'S SITE:

The Ultimate Compact Crawler Solution

The Spektrum Firma Sensored 2-in-1 System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Field-orientated Control (FOC) and professional drag brake performance and torque control, all while being fully waterproof.


The compact 2-in-1 design grants builders the ability to reduce clutter and components, giving you the most room for scale accessories and customization. The integrated design makes the size similar to a 550 can size motor, making it a easy drop-in option for most 1/10 scale crawler, scaler and trailer models.


Available in a low speed 1400Kv option for extreme slow speed and high angle of attack performance. And a high speed 2300Kv for excellent control for trailers and rock bouncers.


Features:

  • Pro-level Drag Brake performance and adjustability

  • RPM/Throttle Matching enabled

  • FOC (Field-Oriented Control) equipped

  • Integrated 40-amp ESC (160amp burst)

  • 2-3S LiPo/6-9 Cell NiMH input voltage range

  • IP-67 rated waterproof system

  • Fully programmable with optional Spektrum ESC Programmer Box (not included)

  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC and Brushless Motor manufacturer

  • Compact for easy installation in most applications

  • Ready to install — no soldering required

  • Adjustable high-power BEC (6V or 7.4V)

  • Firmware updatable through the Spektrum ESC Programming Box

  • High heat resistant IC3 connectors, backwards compatible with EC3 connectors

  • Limited 1-year warranty

Multi-Point Protection

  • Over-current protection

  • Automatic LiPo low-voltage cutoff

  • Thermal protection

  • Failsafe protection

MORE INFO FROM HORIZON HOBBY: https://bit.ly/3lntnNH
